ZRP Can-Am Maverick X3 Double Shear Capped Rear Knuckle - Pro Series

Here is the ultimate fix to middle radius rod/rear knuckle problem on the Cam Am X3.

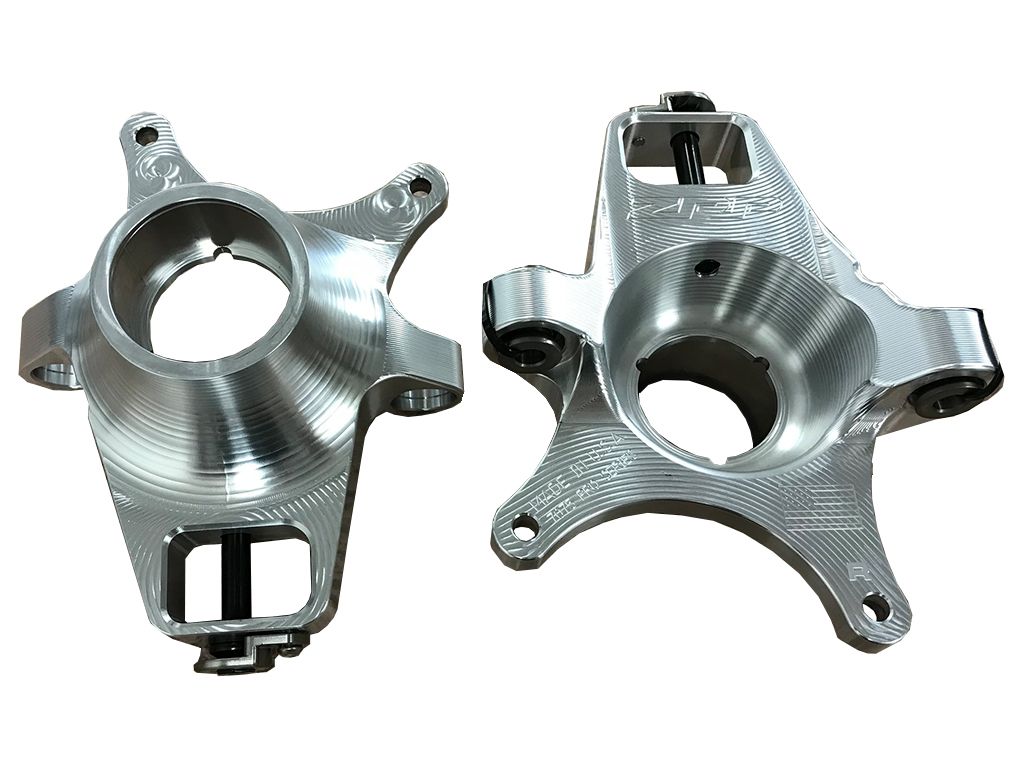

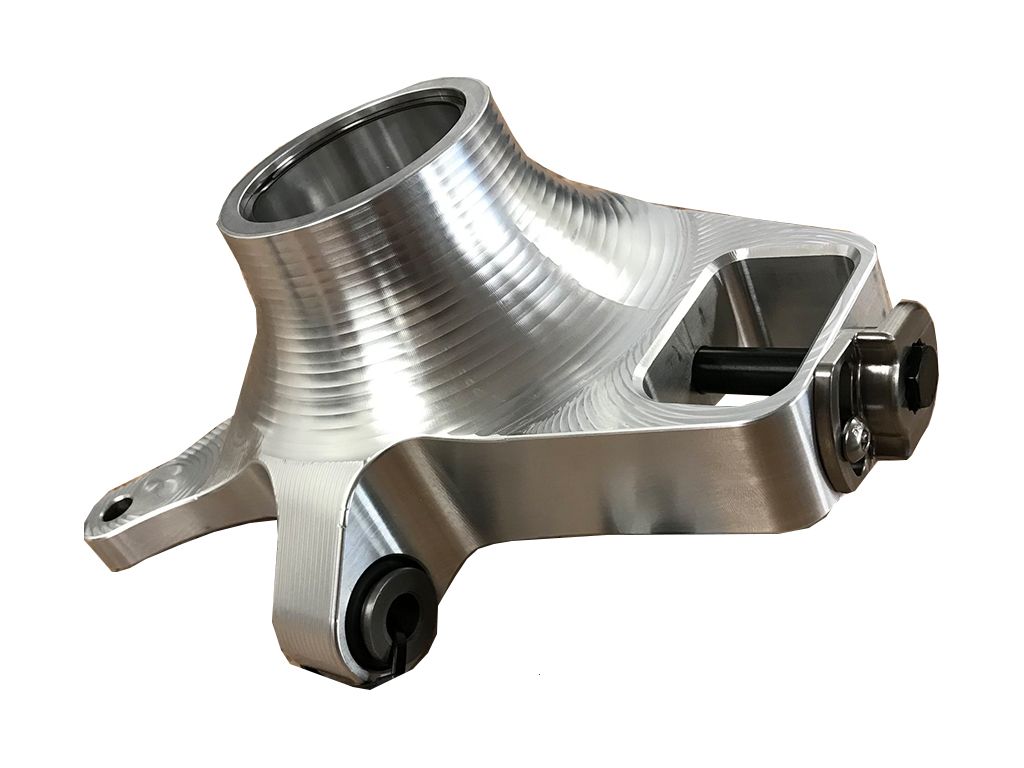

We have built an all billet rear knuckle that puts the middle radius rod in double shear and if that wasn't enough we added an ARP bolt for ultimate strength. We eliminated stress risers and added cross section in all the right spots to make this part truly race proven.

Our knuckle come installed with high end, teflon lined, spherical bearings. These will not wear out like the stock pivots.

Additionally, we have addressed the wheel bearing issue. Taking over 42,000lbs of force the ZRP knuckle is 2.5X as strong as the stock knuckle.

Made from high quality, USA made, 7075-T6 Aluminum. Limited Quantities will be available. Call for exact lead time.

Pre-Installed Hardware included per knuckle

• (1) ARP Bolt

• (1) ZRP anti-rotation locking cap w/screw

• (2) FK uniball bearings w/ (2) snaprings

• (4) ZRP misalignment spacers w/ (2) o-ring

• (1) Earless snapring

 WHEEL BEARINGS NOT INCLUDED UNLESS SELECTED.

*Note: The middle radius rod bolt anti-rotation block was designed for racing applications. The anti-rotation block will not clear the stock trailing arm. This block is not needed for recreational use. If you wish to use the anti-rotation block trimming of your trailing arm may be required.
